0.96 inch TFT IPS LCD Display
High-performance 0.96 inch TFT IPS LCD display module designed for industrial control applications, featuring excellent visibility and robust construction.

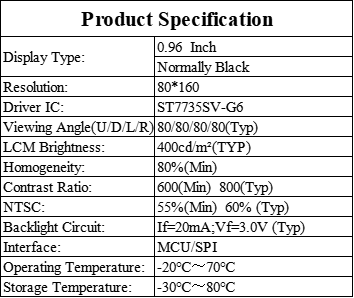

Product Specifications
| Application |
Industrial Control |
| Number of pixels |
80*160 pixels |
| Active Area |
10.8*21.7mm |
| Module Outline |
13.5*27.95*1.47mm |
| Viewing Angle (CR>10) |
80/80/80/80 (Typ) |
| NTSC |
60% (Typ) |
| LCM Brightness |
400cd/m² (Typ) -- Adjustable |
| Interface |
MCU/SPI |
| Operating Temperature |
-20~+70℃ |
| Storage Temperature |
-30~+80℃ |
Key Features
- High-quality TFT IPS LCD display with crisp 80×160 pixel resolution
- Compact module size (13.5×27.95×1.47mm) ideal for space-constrained applications
- Wide viewing angles (80/80/80/80) for optimal visibility
- Adjustable brightness up to 400cd/m² for various lighting conditions
- Dual interface support (MCU/SPI) for flexible integration
- Robust operating temperature range (-20°C to +70°C) for industrial environments
0.96-Inch Graphic TFT LCD, SPI Interface Graphic TFT LCD, 80×160 Pixels TFT LCD
0.96-Inch IPS TFT LCD
Product Introduction
Despite the compact dimensions, small TFT LCD screens are widely utilized across various industries, including industrial control, smart wearable devices, instrumentation, digital cameras, electronic tags, communication equipment, and smart home applications. The 0.96-inch small-format TFT display model JT-0.96IPS incorporates an SPI (Serial Peripheral Interface) or MCU (Microcontroller Unit Interface). This helps save chip pin resources and simplifies PCB layout design.
The JT-0.96IPS is a full-color TFT LCD module with a diagonal size of 0.96 inches and a resolution of 80 × 160 pixels. It supports the SPI or MCU interface, offering ease of programming and integration. The module measures 13.5 × 27.95 × 1.47 mm, with an active display area of 10.8 × 21.7 mm.
Featuring IPS technology, this display provides consistent image quality and wide viewing angles from all directions, ensuring an optimal user experience. The module integrates an ST7735SV controller and operates at a logic supply voltage between 3.0V and 3.4V. It supports an operating temperature range of -20 ℃ to +70 ℃ and a storage temperature range of -30 ℃ to +80 ℃. The FPC configuration can be customized according to user requirements, and the module can be equipped with a capacitive touch panel.

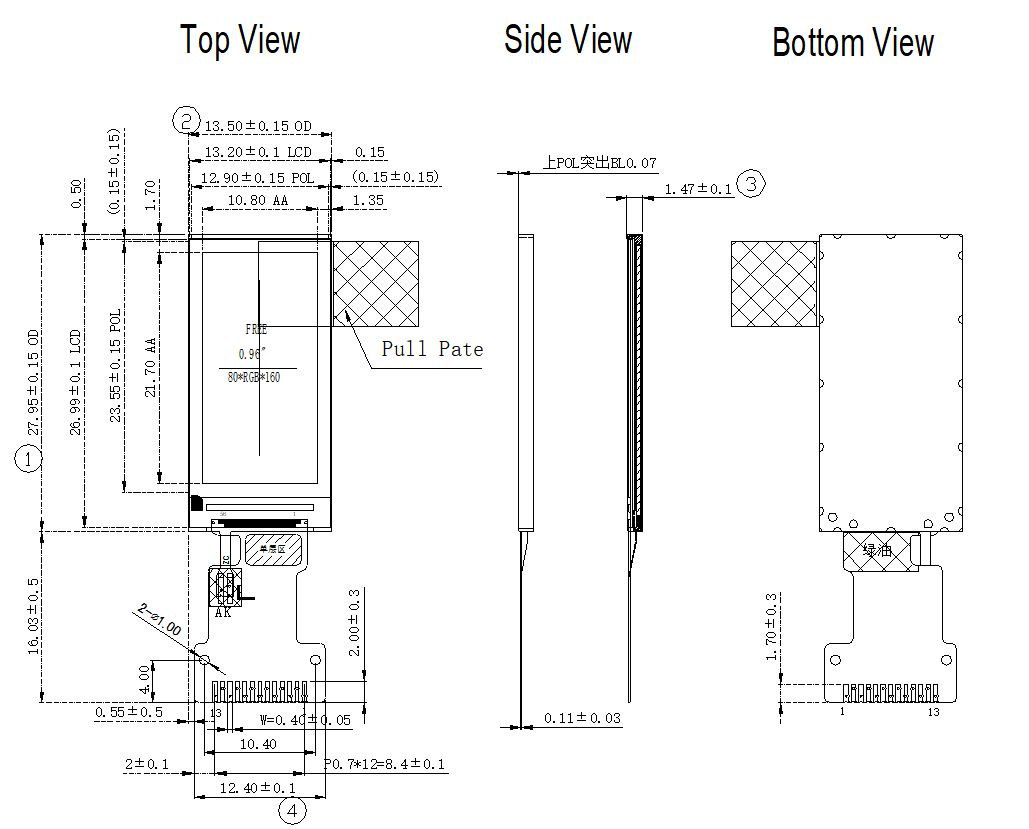

0.96 inch 80*160 TFT Touch Display Module Drawing
