3.53 Inch IPS TFT LCD Display Screen
High-performance industrial-grade IPS TFT LCD display with excellent viewing angles and contrast ratio, designed for industrial control applications.

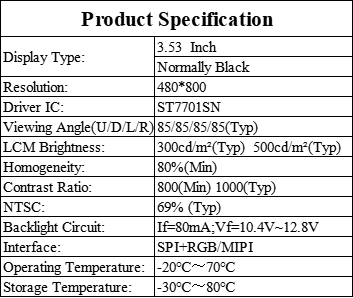

| Application |
Industrial Control |
| Number of pixels |
480*800 pixels |
| Active Area |
45.36*75.6mm |
| Module Outline |
51.32*86.61*3.56mm |
| Aspect Ratio |
5:3 |
| Display Mode |
Normally Black |
| Viewing Angle (CR>10) |
85/85/85/85 (Typ) |
| Contrast Ratio |
800MIN, 1000 (Typ) |
| NTSC |
69% (Typ) |
| LCM Brightness |
250cd/m² (Typ) 500cd/m² (Typ) |
| Interface |
SPI+RGB/MIPI |
| Operating Temperature |
-20~+70℃ |
| Storage Temperature |
-30~+80℃ |
3.53-Inch TFT IPS LCD Display, SPI+RGB/MIPI Interface TFT LCD Display, 480×800 Dots TFT LCD Display
3.5-Inch TFT IPS LCD Display 480×800 SPI+RGB/MIPI Interface – Product Introduction
Product Quick Review
Model No.: JT-3.53IPS
Resolution: 480 × 800 dots
View Direction: 12H
Controller IC: ST7701SN
Brightness: 250 cd/m²
Touch Panel: Capacitive Touch Panel

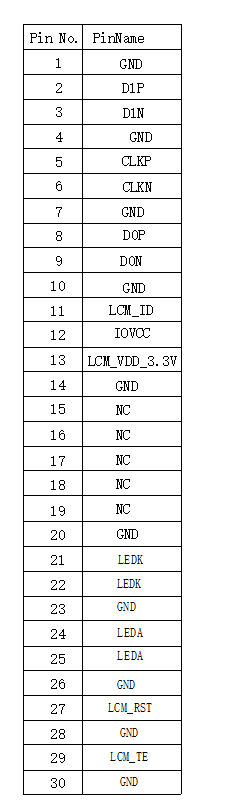

Description
The JT-3.53IPS is a 3.53-inch TFT-LCD display module with a resolution of 480 × 800 pixels and a brightness of 250 cd/m². It incorporates the ST7701SN controller IC and supports SPI+RGB and MIPI interfaces. The module dimensions are 51.32 × 86.61 × 3.56 mm, with an active display area of 45.36 × 75.6 mm. It operates at an analog supply voltage ranging from 2.5V to 3.3V, with a typical value of 2.8V.
This display module utilizes a IPS-type screen with a 12H viewing direction. The JT-3.53IPS can operate within a temperature range of -20°C to +70°C and can be stored in temperatures ranging from -30°C to +80°C.

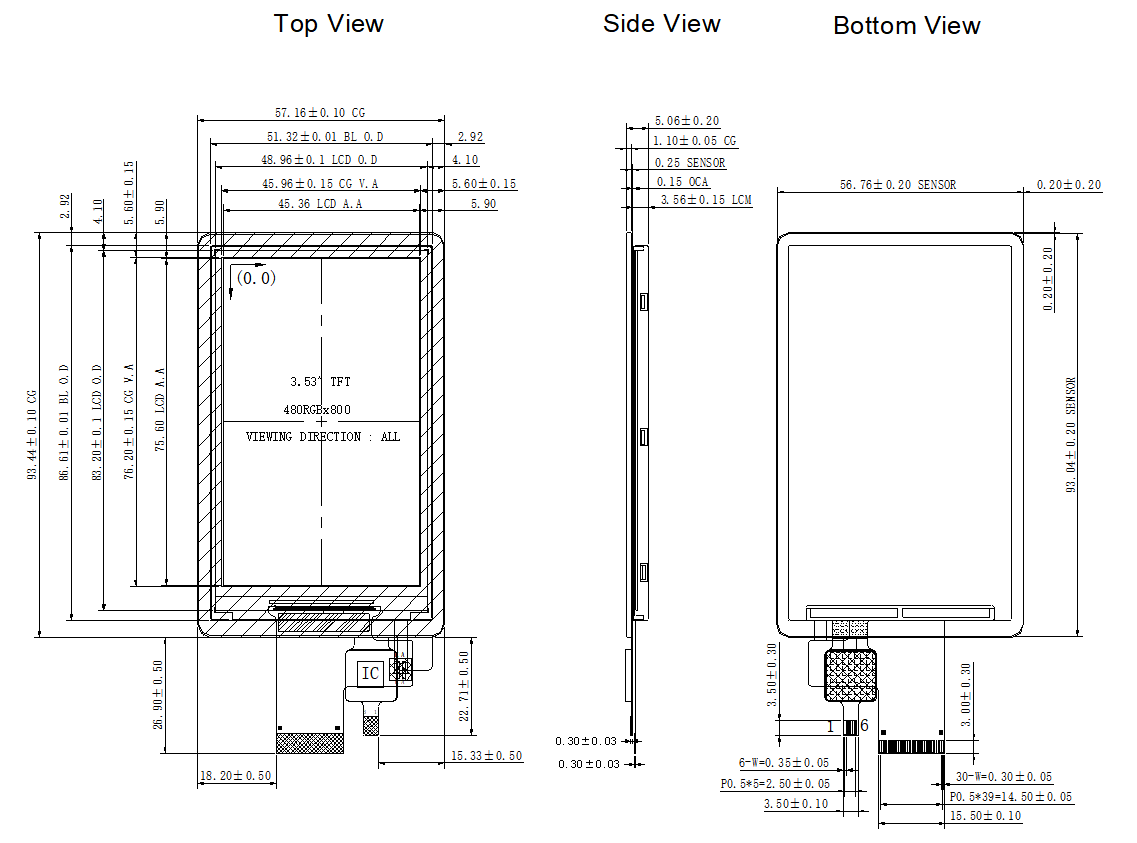

3.53 inch IPS 480*800 TFT Touch Display Module Drawing
Absolute Maximum Limit
| Item |
Symbol |
Value |
Unit |
| Power supply voltage for logic |
VDD |
1.6~3.3 |
V |
| Input voltage |
Vin |
VDD+0.3 |
V |
| Operating temperature |
Topr |
-20 to 70 |
°C |
| Storage temperature |
Tstg |
-30 to 80 |
°C |
