4.3 Inch IPS TFT Display Screen Vertical Screen
Product Overview
High-performance 4.3-inch IPS TFT display screen designed for industrial control applications, featuring vertical orientation and superior viewing characteristics.

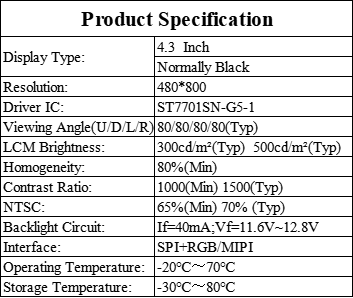

Technical Specifications
| Parameter |
Specification |
| Application |
Industrial Control |
| Number of pixels |
480*800 pixels |
| Active Area |
56.16*93.6mm |
| Module Outline |
60.36*102.5*1.47mm |
| Aspect Ratio |
16:9 |
| Display Mode |
Normally Black |
| Viewing Angle (CR>10) |
80/80/80/80 (Typ) |
| Contrast Ratio |
1000 MIN, 1500 (Typ) |
| NTSC |
70% (Typ) |
| LCM Brightness |
250cd/m² (Typ) 500cd/m² (Typ) |
| Interface |
SPI+RGB/MIPI |
| Operating Temperature |
-20~+70℃ |
| Storage Temperature |
-30~+80℃ |
Key Features
- High-resolution 480×800 pixel IPS display
- Wide 80° viewing angle from all directions
- High contrast ratio up to 1500:1
- Dual brightness options: 250cd/m² or 500cd/m²
- Robust industrial temperature range operation
- Flexible SPI+RGB/MIPI interface options
ST7701SN TFT LCD Display Module, 4.3-Inch TFT LCD Display Module, IPS TFT LCD Portrait Display Module
Capacitive Touchscreen TFT LCD Display Module, 4.3-Inch MIPI/SPI+RGB Interface
Product Quick Review
Model No.: JT-4.3IPSP
Resolution: 480 × 800 dots
Technology: IPS, wide viewing angles
Surface Brightness: 250 cd/m²
Driver IC: ST7701SN
Interface: SPI+RGB/MIPI
Touchscreen Type: Capacitive
Description
The JT-4.3IPSP is a 4.3-inch Portrait TFT-LCD display module with a resolution of 480 × 800 pixels and a brightness of 250 cd/m². It incorporates the ST7701SN controller IC and supports MIPI and SPI+RGB interfaces. The physical dimensions of the module are 60.36 mm (W) × 102.5 mm (H) × 1.47 mm (T), with an active display area measuring 56.16 mm (W) × 93.6 mm (H). The analog supply voltage range is 2.6V to 3.3V, with a typical operating voltage of 2.8V.
Featuring IPS technology, this display ensures clear and consistent visibility from wide viewing angles. The JT-4.3IPSP module supports an operating temperature range of -20°C to +70°C and can be stored within temperatures ranging from -30°C to +80°C.
4.3 inch IPS 480*800 Portrait TFT Touch Display Module Drawing
Maximum Absolute Limite
|
Item
|
Symbol |
Value |
Unit |
| Power supply voltage for logic |
VDD |
1.6~3.3 |
V |
| Input voltage |
Vin |
VDD+0.3 |
V |
| Operating temperature |
Topr |
-20 to 70 |
°C |
| Storage temperature |
Tstg |
-30 to 80 |
°C |
Backlight Electrical-optical Characteristics
| Item |
Symbol |
MIN |
TYP |
MAX |
UNIT |
Test Condition
|
Note |
| Supply Voltage |
Vf |
- |
16 |
- |
V |
If=40 mA |
- |
| Supply Current |
If |
- |
40 |
- |
mA |
- |
- |
| Reverse Voltage |
Vr |
- |
- |
5 |
V |
- |
|
| Power dissipation |
Pd |
- |
- |
- |
mW |
- |
|
| Luminous Intensity for LCM |
-
|
|
250 |
- |
Cd/m2 |
If=40mA |
- |
| Uniformity for LCM |
- |
80 |
- |
- |
％ |
If=40 mA |
- |
| Backlight Color |
White |
