9.0 inch IPS WS LCD Display
Product Description
High-performance 9.0 inch IPS LCD display with wide viewing angles and industrial-grade durability.

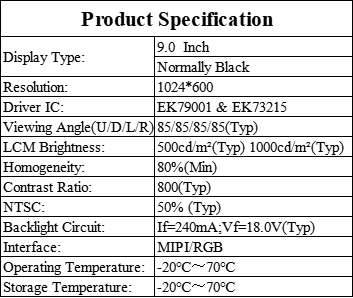

Technical Specifications
| Specification |
Value |
| Number of pixels |
1024 × 600 pixels |
| Active Area |
196.61 × 114.15 mm |
| Module Outline |
210.70 × 126.5 × 5.1 mm |
| Display Mode |
Normally Black |
| Viewing Angle (CR>10) |
85/85/85/85 (Typ) |
| Aspect Ratio |
16:9 |
| NTSC |
50% (Typ) |
| LCM Brightness |
500 cd/m² (Typ), 1000 cd/m² (Typ) |
| Interface |
RGB/MIPI |
| Operating Temperature |
-20°C to +70°C |
| Storage Temperature |
-30°C to +80°C |
Key Features
- High-quality IPS panel with wide viewing angles
- Available in standard (500 cd/m²) and high brightness (1000 cd/m²) versions
- Compact module design with slim 5.1mm thickness
- Supports both RGB and MIPI interfaces
- Wide operating temperature range for industrial applications
9-Inch TFT Module, MIPI/RGB Interface TFT, Industrial-Grade TFT Display
Industrial/Medical Grade 9-Inch TFT with CTP – Product Introduction
The Jingtai Liquid Crystal Display Technology JT-9.0IPSTWWS is a 9-inch industrial/medical grade LCD touch screen with a resolution of 1024 × 600 pixels. It operates at a VDD voltage range of 3 V to 3.6 V and delivers a standard brightness of 500 cd/m². This display is widely used in instruments and meters, GPS devices, POS terminals, card readers, scanners, home automation, video conferencing systems, analyzers, household appliances, and security systems.
This industrial-grade 9-inch TFT display supports an operating temperature range of –20 ℃ to +70 ℃ and a storage temperature range of –20 ℃ to +70 ℃. The module includes a resistive touch panel and has overall dimensions of 210.7 mm (W) × 126.5 mm (H) × 5.1 mm (D).
9.0" LCD 1024*600, 9.0 inch Landscape MIPI/RGB TFT LCD Drawing
FAQ
Q1: Can I place a sample order?
JINGTAI: Yes, we welcome sample orders for quality testing and verification. Mixed samples of different product models are acceptable.
Q2: What is the lead time?
JINGTAI: For off-the-shelf products: Samples are available immediately from stock. Sample remaking takes 1–1.5 weeks, and mass production requires 4–6 weeks. For design-in products: We provide a counter drawing proposal within 2–3 days. Sample production takes about 2-3 weeks after drawing approval. Trial-run or mass production begins within 5–6 weeks after sample approval.
Q3: Is there a MOQ for samples and production orders?
JINGTAI: We have low MOQ requirements. Sample orders of 3–5 pieces are acceptable. For mass production, the standard MOQ is 1,000 pieces per lot. We also support quantities below the mass production MOQ for trial-run or pre-production orders.
Q4: How are the goods shipped, and how long is the delivery time?
JINGTAI: We ship via DHL, UPS, FedEx, or TNT, with delivery typically taking 5–7 days. Air freight and sea shipping are also available.
Q5: What is the procedure for ordering an LCD module?
JINGTAI: First, provide us with your requirements or application details. Second, we provide a quotation based on your needs or our recommendations. Third, you confirm the samples and place a deposit for the formal order. Finally, we proceed with production.
Q6: Can I have my logo printed on the LCD product?
JINGTAI: Yes. Please formally notify us during the design stage, and we will produce samples with your logo for testing and approval. Mass production will follow the approved samples.
Q7: Do you provide a product guarantee?
JINGTAI: Yes, we offer a 1-year warranty on our products.
Q8: How do you handle faulty products?
JINGTAI: First, our products are manufactured under a strict quality control system, with a defective rate of less than 0.2%. Second, during the warranty period, we will replace faulty units with new ones for small quantities along with new orders. For defective batch products, we will repair and return them, or discuss solutions—including recall—depending on the actual situation.
