3.53 Inch IPS TFT LCD Display Module with Capacitive Touch
Product Description
This 3.53 inch IPS TFT LCD display module is designed for smart home control systems, HMI devices, and embedded electronic products. With a 480×800 resolution and capacitive touch technology, it provides clear image presentation and responsive touch operation for modern user interfaces.
The IPS panel delivers wide viewing angles and stable color performance, allowing information to remain visible from different directions. This makes the module suitable for applications where users interact with the display frequently, such as control panels, smart terminals, and automation equipment.
The integrated capacitive touch panel offers smooth and accurate touch response, helping users navigate menus and operate functions more efficiently. Combined with a compact structure, the module can be easily integrated into devices where installation space is limited.
Supporting SPI, RGB, and MIPI interfaces, the display provides flexible integration options for different hardware platforms. Its reliable performance makes it suitable for a wide range of interactive display applications.
Key Features
- IPS technology helps provide clear images and stable color performance from multiple viewing angles.
- The capacitive touch panel enables smooth and responsive interaction for modern graphical user interfaces.
- 480×800 resolution supports clear display of icons, graphics, and operating information.
- SPI, RGB, and MIPI interface options offer flexibility for product development and system integration.
- Compact module design allows easy installation in embedded and space-limited devices.
Applications
- Suitable for smart home control panels used for lighting, security, and environmental management.
- Ideal for HMI equipment requiring clear display performance and convenient touch operation.
- Can be integrated into IoT terminals, smart appliances, and portable electronic devices.
- Applicable to industrial control equipment, monitoring systems, and other embedded display applications.
Product Specifications
|
Number Of Pixels
|
480*800pixels
|
|
Active Area
|
45.36*75.6mm
|
|
Module Outline
|
51.32*86.61*3.56mm
|
|
Aspect Ratio
|
5:3
|
|
Display Model
|
Normally Black
|
|
Viewing Angle(CR>10)
|
85/85/85/85
|
|
Contrast Ratio
|
800(Min) 1000(Typ)
|
|
NTSC
|
69%Typ
|
|
LCM Brightness
|
250 cd/m²(Typ) 500 cd/m²(Typ)
|
|
Interface
|
SPI+RGB/MIPI
|
|
Operating Temperature
|
-20~+70℃
|
|
Storage Temperature
|
-30~+80℃
|

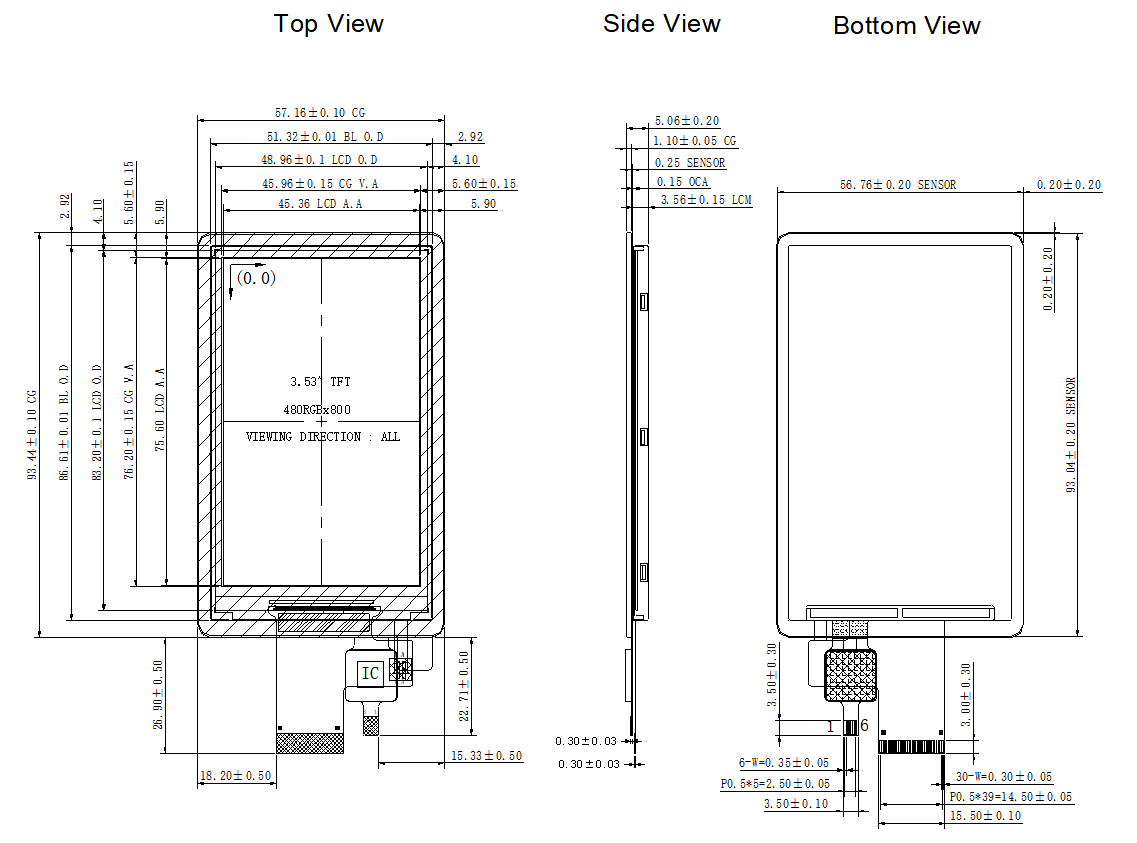

3.53 Inch TFT LCD Module Drawing
